# XAS $L_{2,3}$ as conductivity tensor

Absorption spectra are polarization dependent. In principle one can choose an infinite different number of polarizations. Calculating for each different experimental geometry (or polarization) a new spectrum is cumbersome and not needed. The material properties are given by the conductivity tensor. For dipole transitions a 3 by 3 matrix. The absorption spectra for a given experiment are then found by the relation: \begin{equation} I(\omega,\epsilon) = -\mathrm{Im}[\epsilon^* \cdot \sigma(\omega) \cdot \epsilon], \end{equation} with $\epsilon$ the polarization vector, $\omega$ the photon energy, $\sigma(\omega)$ the energy dependent conductivity tensor, and $I$ the measured intensity. Quanty can calculate the conductivity tensor. This is an extra option given to the function CreateSpectra (\{“Tensor”,true\}).

The example below calculates the conductivity tensor at the Ni $L_{2,3}$ edge. We show two different methods. The first calculates 9 spectra and by linear combining them retrieves the tensor. Method two uses a Block algorithm.

XAS_tensor.Quanty
-- here we calculate the 2p to 3d x-ray absorption of NiO within the Ligand-field theory
-- approximation. The first part of the script is very much the same as calculating
-- the ground-state with the addition that we now also need a 2p core shell in the basis

-- from the previous example we know that within NiO there are 3 states close to each other
-- and then there is an energy gap of about 1 eV. We thus only need to consider the 3
-- lowest states (Npsi=3 later on)

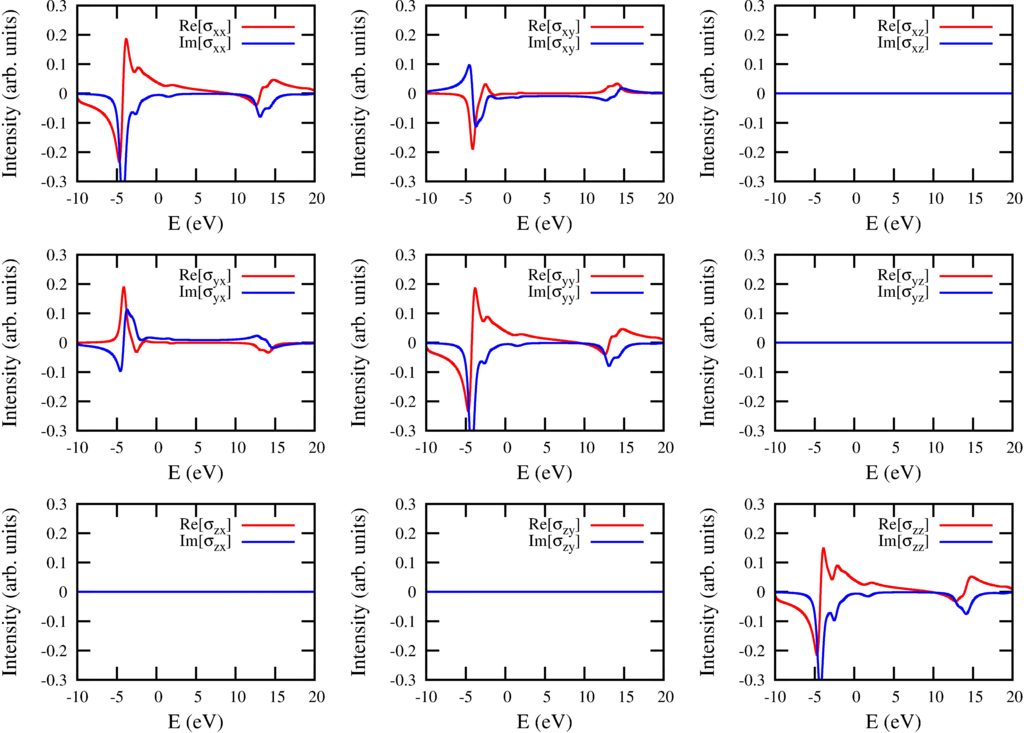

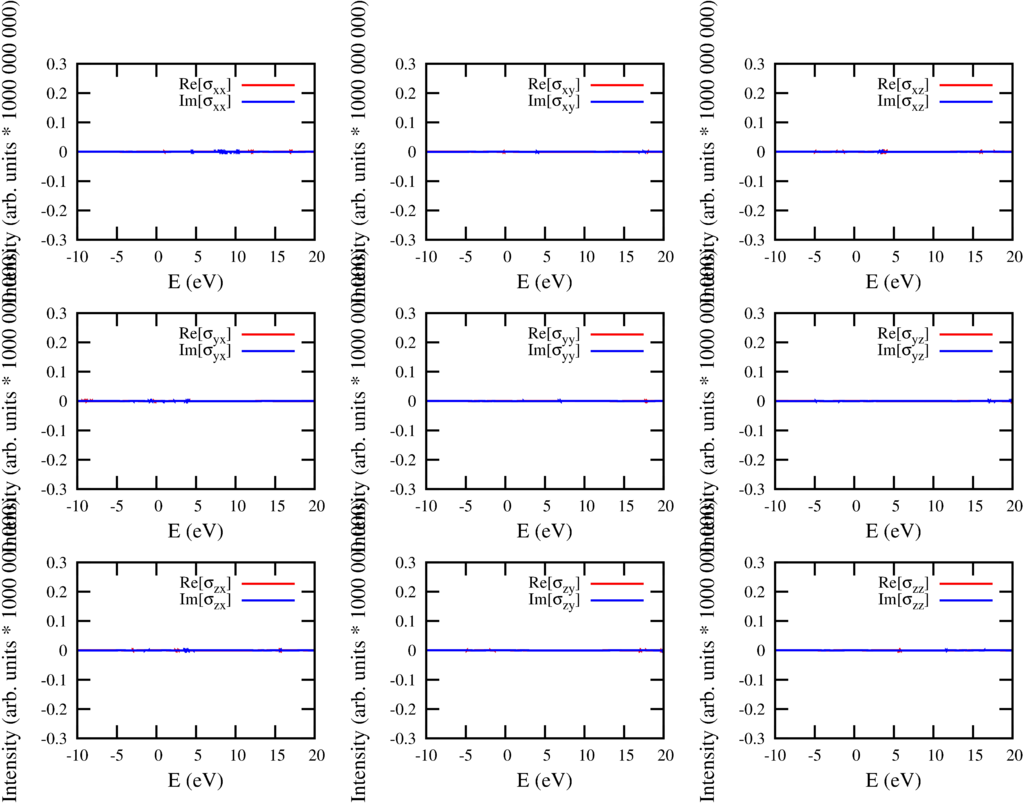

-- the spectra are represented as a 3 by 3 tensor, the conductivity tensor. We show two
-- different methods to calculate this tensor, once creating 9 spectra with different
-- polarizations, once using the option Tensor in the CreateSpectra function

NF=26
NB=0
IndexDn_2p={ 0, 2, 4}
IndexUp_2p={ 1, 3, 5}
IndexDn_3d={ 6, 8,10,12,14}
IndexUp_3d={ 7, 9,11,13,15}
IndexDn_Ld={16,18,20,22,24}
IndexUp_Ld={17,19,21,23,25}

-- angular momentum operators on the d-shell

OppSx_3d   =NewOperator("Sx"   ,NF, IndexUp_3d, IndexDn_3d)
OppSy_3d   =NewOperator("Sy"   ,NF, IndexUp_3d, IndexDn_3d)
OppSz_3d   =NewOperator("Sz"   ,NF, IndexUp_3d, IndexDn_3d)
OppSsqr_3d =NewOperator("Ssqr" ,NF, IndexUp_3d, IndexDn_3d)
OppSplus_3d=NewOperator("Splus",NF, IndexUp_3d, IndexDn_3d)
OppSmin_3d =NewOperator("Smin" ,NF, IndexUp_3d, IndexDn_3d)

OppLx_3d   =NewOperator("Lx"   ,NF, IndexUp_3d, IndexDn_3d)
OppLy_3d   =NewOperator("Ly"   ,NF, IndexUp_3d, IndexDn_3d)
OppLz_3d   =NewOperator("Lz"   ,NF, IndexUp_3d, IndexDn_3d)
OppLsqr_3d =NewOperator("Lsqr" ,NF, IndexUp_3d, IndexDn_3d)
OppLplus_3d=NewOperator("Lplus",NF, IndexUp_3d, IndexDn_3d)
OppLmin_3d =NewOperator("Lmin" ,NF, IndexUp_3d, IndexDn_3d)

OppJx_3d   =NewOperator("Jx"   ,NF, IndexUp_3d, IndexDn_3d)
OppJy_3d   =NewOperator("Jy"   ,NF, IndexUp_3d, IndexDn_3d)
OppJz_3d   =NewOperator("Jz"   ,NF, IndexUp_3d, IndexDn_3d)
OppJsqr_3d =NewOperator("Jsqr" ,NF, IndexUp_3d, IndexDn_3d)
OppJplus_3d=NewOperator("Jplus",NF, IndexUp_3d, IndexDn_3d)
OppJmin_3d =NewOperator("Jmin" ,NF, IndexUp_3d, IndexDn_3d)

Oppldots_3d=NewOperator("ldots",NF, IndexUp_3d, IndexDn_3d)

-- Angular momentum operators on the Ligand shell

OppSx_Ld   =NewOperator("Sx"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppSy_Ld   =NewOperator("Sy"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppSz_Ld   =NewOperator("Sz"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppSsqr_Ld =NewOperator("Ssqr" ,NF, IndexUp_Ld, IndexDn_Ld)
OppSplus_Ld=NewOperator("Splus",NF, IndexUp_Ld, IndexDn_Ld)
OppSmin_Ld =NewOperator("Smin" ,NF, IndexUp_Ld, IndexDn_Ld)

OppLx_Ld   =NewOperator("Lx"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppLy_Ld   =NewOperator("Ly"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppLz_Ld   =NewOperator("Lz"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppLsqr_Ld =NewOperator("Lsqr" ,NF, IndexUp_Ld, IndexDn_Ld)
OppLplus_Ld=NewOperator("Lplus",NF, IndexUp_Ld, IndexDn_Ld)
OppLmin_Ld =NewOperator("Lmin" ,NF, IndexUp_Ld, IndexDn_Ld)

OppJx_Ld   =NewOperator("Jx"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppJy_Ld   =NewOperator("Jy"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppJz_Ld   =NewOperator("Jz"   ,NF, IndexUp_Ld, IndexDn_Ld)
OppJsqr_Ld =NewOperator("Jsqr" ,NF, IndexUp_Ld, IndexDn_Ld)
OppJplus_Ld=NewOperator("Jplus",NF, IndexUp_Ld, IndexDn_Ld)
OppJmin_Ld =NewOperator("Jmin" ,NF, IndexUp_Ld, IndexDn_Ld)

-- total angular momentum
OppSx = OppSx_3d + OppSx_Ld
OppSy = OppSy_3d + OppSy_Ld
OppSz = OppSz_3d + OppSz_Ld
OppSsqr = OppSx * OppSx + OppSy * OppSy + OppSz * OppSz
OppLx = OppLx_3d + OppLx_Ld
OppLy = OppLy_3d + OppLy_Ld
OppLz = OppLz_3d + OppLz_Ld
OppLsqr = OppLx * OppLx + OppLy * OppLy + OppLz * OppLz
OppJx = OppJx_3d + OppJx_Ld
OppJy = OppJy_3d + OppJy_Ld
OppJz = OppJz_3d + OppJz_Ld
OppJsqr = OppJx * OppJx + OppJy * OppJy + OppJz * OppJz

-- define the coulomb operator
-- we here define the part depending on F0 seperately from the part depending on F2
-- when summing we can put in the numerical values of the slater integrals

OppF0_3d =NewOperator("U", NF, IndexUp_3d, IndexDn_3d, {1,0,0})
OppF2_3d =NewOperator("U", NF, IndexUp_3d, IndexDn_3d, {0,1,0})
OppF4_3d =NewOperator("U", NF, IndexUp_3d, IndexDn_3d, {0,0,1})

-- define onsite energies - crystal field
-- Akm = {{k1,m1,Akm1},{k2,m2,Akm2}, ... }

Akm = PotentialExpandedOnClm("Oh", 2, {0.6,-0.4})
OpptenDq_3d = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, Akm)
OpptenDq_Ld = NewOperator("CF", NF, IndexUp_Ld, IndexDn_Ld, Akm)

Akm = PotentialExpandedOnClm("Oh", 2, {1,0})
OppNeg_3d = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, Akm)
OppNeg_Ld = NewOperator("CF", NF, IndexUp_Ld, IndexDn_Ld, Akm)
Akm = PotentialExpandedOnClm("Oh", 2, {0,1})
OppNt2g_3d = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, Akm)
OppNt2g_Ld = NewOperator("CF", NF, IndexUp_Ld, IndexDn_Ld, Akm)

OppNUp_2p = NewOperator("Number", NF, IndexUp_2p, IndexUp_2p, {1,1,1})
OppNDn_2p = NewOperator("Number", NF, IndexDn_2p, IndexDn_2p, {1,1,1})
OppN_2p = OppNUp_2p + OppNDn_2p
OppNUp_3d = NewOperator("Number", NF, IndexUp_3d, IndexUp_3d, {1,1,1,1,1})
OppNDn_3d = NewOperator("Number", NF, IndexDn_3d, IndexDn_3d, {1,1,1,1,1})
OppN_3d = OppNUp_3d + OppNDn_3d
OppNUp_Ld = NewOperator("Number", NF, IndexUp_Ld, IndexUp_Ld, {1,1,1,1,1})
OppNDn_Ld = NewOperator("Number", NF, IndexDn_Ld, IndexDn_Ld, {1,1,1,1,1})
OppN_Ld = OppNUp_Ld + OppNDn_Ld

-- define L-d interaction

Akm = PotentialExpandedOnClm("Oh", 2, {1,0})
OppVeg  = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, IndexUp_Ld, IndexDn_Ld,Akm) +  NewOperator("CF", NF, IndexUp_Ld, IndexDn_Ld, IndexUp_3d, IndexDn_3d, Akm)
Akm = PotentialExpandedOnClm("Oh", 2, {0,1})
OppVt2g = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, IndexUp_Ld, IndexDn_Ld,Akm) +  NewOperator("CF", NF, IndexUp_Ld, IndexDn_Ld, IndexUp_3d, IndexDn_3d, Akm)

-- core valence interaction

Oppcldots= NewOperator("ldots", NF, IndexUp_2p, IndexDn_2p)
OppUpdF0 = NewOperator("U", NF, IndexUp_2p, IndexDn_2p, IndexUp_3d, IndexDn_3d, {1,0}, {0,0})
OppUpdF2 = NewOperator("U", NF, IndexUp_2p, IndexDn_2p, IndexUp_3d, IndexDn_3d, {0,1}, {0,0})
OppUpdG1 = NewOperator("U", NF, IndexUp_2p, IndexDn_2p, IndexUp_3d, IndexDn_3d, {0,0}, {1,0})
OppUpdG3 = NewOperator("U", NF, IndexUp_2p, IndexDn_2p, IndexUp_3d, IndexDn_3d, {0,0}, {0,1})

-- dipole transition

t=math.sqrt(1/2)

Akm = {{1,-1,t},{1, 1,-t}}
TXASx = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, IndexUp_2p, IndexDn_2p, Akm)
Akm = {{1,-1,t*I},{1, 1,t*I}}
TXASy = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, IndexUp_2p, IndexDn_2p, Akm)
Akm = {{1,0,1}}
TXASz = NewOperator("CF", NF, IndexUp_3d, IndexDn_3d, IndexUp_2p, IndexDn_2p, Akm)

TXASr = t*(TXASx - I * TXASy)
TXASl =-t*(TXASx + I * TXASy)

-- We follow the energy definitions as introduced in the group of G.A. Sawatzky (Groningen)
-- J. Zaanen, G.A. Sawatzky, and J.W. Allen PRL 55, 418 (1985)
-- for parameters of specific materials see
-- A.E. Bockquet et al. PRB 55, 1161 (1996)
-- After some initial discussion the energies U and Delta refer to the center of a configuration
-- The L^10 d^n   configuration has an energy 0
-- The L^9  d^n+1 configuration has an energy Delta
-- The L^8  d^n+2 configuration has an energy 2*Delta+Udd
--
-- If we relate this to the onsite energy of the L and d orbitals we find
-- 10 eL +  n    ed + n(n-1)     U/2 == 0
--  9 eL + (n+1) ed + (n+1)n     U/2 == Delta
--  8 eL + (n+2) ed + (n+1)(n+2) U/2 == 2*Delta+U
-- 3 equations with 2 unknowns, but with interdependence yield:
-- ed = (10*Delta-nd*(19+nd)*U/2)/(10+nd)
-- eL = nd*((1+nd)*Udd/2-Delta)/(10+nd)
--
-- For the final state we/they defined
-- The 2p^5 L^10 d^n+1 configuration has an energy 0
-- The 2p^5 L^9  d^n+2 configuration has an energy Delta + Udd - Upd
-- The 2p^5 L^8  d^n+3 configuration has an energy 2*Delta + 3*Udd - 2*Upd
--
-- If we relate this to the onsite energy of the p and d orbitals we find
-- 6 ep + 10 eL +  n    ed + n(n-1)     Udd/2 + 6 n     Upd == 0
-- 6 ep +  9 eL + (n+1) ed + (n+1)n     Udd/2 + 6 (n+1) Upd == Delta
-- 6 ep +  8 eL + (n+2) ed + (n+1)(n+2) Udd/2 + 6 (n+2) Upd == 2*Delta+Udd
-- 5 ep + 10 eL + (n+1) ed + (n+1)(n)   Udd/2 + 5 (n+1) Upd == 0
-- 5 ep +  9 eL + (n+2) ed + (n+2)(n+1) Udd/2 + 5 (n+2) Upd == Delta+Udd-Upd
-- 5 ep +  8 eL + (n+3) ed + (n+3)(n+2) Udd/2 + 5 (n+3) Upd == 2*Delta+3*Udd-2*Upd
-- 6 equations with 3 unknowns, but with interdependence yield:
-- epfinal = (10*Delta + (1+nd)*(nd*Udd/2-(10+nd)*Upd) / (16+nd)
-- edfinal = (10*Delta - nd*(31+nd)*Udd/2-90*Upd) / (16+nd)
-- eLfinal = ((1+nd)*(nd*Udd/2+6*Upd)-(6+nd)*Delta) / (16+nd)
--
--
--
-- note that ed-ep = Delta - nd * U and not Delta
-- note furthermore that ep and ed here are defined for the onsite energy if the system had
-- locally nd electrons in the d-shell. In DFT or Hartree Fock the d occupation is in the end not
-- nd and thus the onsite energy of the Kohn-Sham orbitals is not equal to ep and ed in model
-- calculations.
--
-- note furthermore that ep and eL actually should be different for most systems. We happily ignore this fact
--
-- We normally take U and Delta as experimentally determined parameters

-- number of electrons (formal valence)
nd = 8
-- parameters from experiment (core level PES)
Udd     =  7.3
Upd     =  8.5
Delta   =  4.7
-- parameters obtained from DFT (PRB 85, 165113 (2012))
F2dd    = 11.14
F4dd    =  6.87
F2pd    =  6.67
G1pd    =  4.92
G3pd    =  2.80
tenDq   =  0.56
tenDqL  =  1.44
Veg     =  2.06
Vt2g    =  1.21
zeta_3d =  0.081
zeta_2p = 11.51
Bz      =  0.000001
Hz      =  0.120

ed      = (10*Delta-nd*(19+nd)*Udd/2)/(10+nd)
eL      = nd*((1+nd)*Udd/2-Delta)/(10+nd)

epfinal = (10*Delta + (1+nd)*(nd*Udd/2-(10+nd)*Upd)) / (16+nd)
edfinal = (10*Delta - nd*(31+nd)*Udd/2-90*Upd) / (16+nd)
eLfinal = ((1+nd)*(nd*Udd/2+6*Upd) - (6+nd)*Delta) / (16+nd)

F0dd    = Udd + (F2dd+F4dd) * 2/63
F0pd    = Upd + (1/15)*G1pd + (3/70)*G3pd

Hamiltonian =  F0dd*OppF0_3d + F2dd*OppF2_3d + F4dd*OppF4_3d + zeta_3d*Oppldots_3d + Bz*(2*OppSz_3d + OppLz_3d) + Hz * OppSz_3d + tenDq*OpptenDq_3d + tenDqL*OpptenDq_Ld + Veg * OppVeg + Vt2g * OppVt2g + ed * OppN_3d + eL * OppN_Ld

XASHamiltonian =  F0dd*OppF0_3d + F2dd*OppF2_3d + F4dd*OppF4_3d + zeta_3d*Oppldots_3d + Bz*(2*OppSz_3d + OppLz_3d)+ Hz * OppSz_3d + tenDq*OpptenDq_3d + tenDqL*OpptenDq_Ld + Veg * OppVeg + Vt2g * OppVt2g + edfinal * OppN_3d + eLfinal * OppN_Ld + epfinal * OppN_2p + zeta_2p * Oppcldots + F0pd * OppUpdF0 + F2pd * OppUpdF2 + G1pd * OppUpdG1 + G3pd * OppUpdG3

-- we now can create the lowest Npsi eigenstates:
Npsi=3
-- in order to make sure we have a filling of 8 electrons we need to define some restrictions
StartRestrictions = {NF, NB, {"000000 1111111111 0000000000",8,8}, {"111111 0000000000 1111111111",16,16}}

psiList = Eigensystem(Hamiltonian, StartRestrictions, Npsi)
oppList={Hamiltonian, OppSsqr, OppLsqr, OppJsqr, OppSz_3d, OppLz_3d, Oppldots_3d, OppF2_3d, OppF4_3d, OppNeg_3d, OppNt2g_3d, OppNeg_Ld, OppNt2g_Ld, OppN_3d}

-- print of some expectation values

print("  #    <E>      <S^2>    <L^2>    <J^2>    <S_z^3d> <L_z^3d> <l.s>    <F>   <F>   <Neg^3d> <Nt2g^3d><Neg^Ld> <Nt2g^Ld><N^3d>");
for i = 1,#psiList do
io.write(string.format("%3i ",i))
for j = 1,#oppList do
expectationvalue = Chop(psiList[i]*oppList[j]*psiList[i])
io.write(string.format("%8.3f ",expectationvalue))
end
io.write("\n")
end

-- calculating the spectra is simple and single line once all operators and wave-functions
-- are defined.

--------------------------- Method 1 -----------------------------
-- in order to create the tensor we define 9 spectra using operators that are combinations
-- of x, y and z polarized light

TXASypz  =  sqrt(1/2)*(TXASy + TXASz)
TXASzpx  =  sqrt(1/2)*(TXASz + TXASx)
TXASxpy  =  sqrt(1/2)*(TXASx + TXASy)
TXASypiz =  sqrt(1/2)*(TXASy + I * TXASz)
TXASzpix =  sqrt(1/2)*(TXASz + I * TXASx)
TXASxpiy =  sqrt(1/2)*(TXASx + I * TXASy)

TimeStart("Mehtod1")
XASSpectra = CreateSpectra(XASHamiltonian, {TXASx,TXASy,TXASz,TXASypz,TXASzpx,TXASxpy,TXASypiz,TXASzpix,TXASxpiy}, psiList, {{"Emin",-10}, {"Emax",20}, {"NE",3000}, {"Gamma",0.1}})
TimeEnd("Mehtod1")

XASSpectra.Broaden(0.4, {{-3.7, 0.45}, {-2.2, 0.65}, { 0.0, 0.65}, { 8  , 0.80}, {13.2, 0.80}, {14.0, 1.075}, {16.0, 1.075}})

-- linear combine them into a tensor (note that the order here is given by the list of operators in the CreateSpectra function

XASSigma_method1 = Spectra.Sum(XASSpectra,{1,0,0,               0,0,0, 0, 0,0}, {-(1-I)/2,-(1-I)/2,0, 0,0,1, 0,0,-I}, {-(1+I)/2,0,-(1+I)/2, 0,1,0, 0,I,0 }
,{-(1+I)/2,-(1+I)/2,0, 0,0,1, 0, 0,I}, {0,1,0, 0,0,0, 0,0,0},                {0,-(1-I)/2,-(1-I)/2, 1,0,0, -I,0,0}
,{-(1-I)/2,0,-(1-I)/2, 0,1,0, 0,-I,0}, {0,-(1+I)/2,-(1+I)/2, 1,0,0, I,0, 0}, {0,0,1, 0,0,0, 0,0,0})

XASSigma_method1.Print({{"file","XASSigma_method1.dat"}})

-- prepare the gnuplot output for Sigma
gnuplotInput = [[
set autoscale   # scale axes automatically
set xtic auto   # set xtics automatically
set ytic auto   # set ytics automatically
set style line  1 lt 1 lw 2 lc 1
set style line  2 lt 1 lw 2 lc 3

set xlabel "E (eV)" font "Times,10"
set ylabel "Intensity (arb. units)" font "Times,10"

set yrange [-0.3:0.3]

set out 'SigmaTensor_method1.ps'
set size 1.0, 1.0
set terminal postscript portrait enhanced color  "Times" 8

set multiplot layout 6, 3

plot "XASSigma_method1.dat" u 1:2  title 'Re[{/Symbol s}_{xx}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:3  title 'Im[{/Symbol s}_{xx}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:4  title 'Re[{/Symbol s}_{xy}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:5  title 'Im[{/Symbol s}_{xy}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:6  title 'Re[{/Symbol s}_{xz}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:7  title 'Im[{/Symbol s}_{xz}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:8  title 'Re[{/Symbol s}_{yx}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:9  title 'Im[{/Symbol s}_{yx}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:10 title 'Re[{/Symbol s}_{yy}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:11 title 'Im[{/Symbol s}_{yy}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:12 title 'Re[{/Symbol s}_{yz}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:13 title 'Im[{/Symbol s}_{yz}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:14 title 'Re[{/Symbol s}_{zx}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:15 title 'Im[{/Symbol s}_{zx}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:16 title 'Re[{/Symbol s}_{zy}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:17 title 'Im[{/Symbol s}_{zy}]' with lines ls 2
plot "XASSigma_method1.dat" u 1:18 title 'Re[{/Symbol s}_{zz}]' with lines ls 1,\
"XASSigma_method1.dat" u 1:19 title 'Im[{/Symbol s}_{zz}]' with lines ls 2

unset multiplot
]]

print("Prepare gnuplot-file for Sigma")

-- write the gnuplot script to a file
file = io.open("SigmaTensor_method1.gnuplot", "w")
file:write(gnuplotInput)
file:close()

print("")
print("Execute the gnuplot to produce plots and convert the output into a pdf-file")

-- call gnuplot to execute the script
os.execute("gnuplot SigmaTensor_method1.gnuplot ; ps2pdf SigmaTensor_method1.ps ; ps2eps SigmaTensor_method1.ps ;  mv SigmaTensor_method1.eps temp.eps ; eps2eps temp.eps SigmaTensor_method1.eps ; rm temp.eps")

--------------------------- Method 2 -----------------------------

TimeStart("Mehtod2")
XASSigma_method2, SigmaTri = CreateSpectra(XASHamiltonian, {TXASx,TXASy,TXASz}, psiList, {{"Emin",-10}, {"Emax",20}, {"NE",3000}, {"Gamma",0.1}, {"Tensor",true}})
TimeEnd("Mehtod2")

XASSigma_method2.Broaden(0.4, {{-3.7, 0.45}, {-2.2, 0.65}, { 0.0, 0.65}, { 8  , 0.80}, {13.2, 0.80}, {14.0, 1.075}, {16.0, 1.075}})

XASSigma_method2.Print({{"file","XASSigma_method2.dat"}})

-- prepare the gnuplot output for Sigma
gnuplotInput = [[
set autoscale   # scale axes automatically
set xtic auto   # set xtics automatically
set ytic auto   # set ytics automatically
set style line  1 lt 1 lw 2 lc 1
set style line  2 lt 1 lw 2 lc 3

set xlabel "E (eV)" font "Times,10"
set ylabel "Intensity (arb. units)" font "Times,10"

set yrange [-0.3:0.3]

set out 'SigmaTensor_method2.ps'
set size 1.0, 1.0
set terminal postscript portrait enhanced color  "Times" 8

set multiplot layout 6, 3

plot "XASSigma_method2.dat" u 1:2  title 'Re[{/Symbol s}_{xx}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:3  title 'Im[{/Symbol s}_{xx}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:4  title 'Re[{/Symbol s}_{xy}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:5  title 'Im[{/Symbol s}_{xy}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:6  title 'Re[{/Symbol s}_{xz}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:7  title 'Im[{/Symbol s}_{xz}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:8  title 'Re[{/Symbol s}_{yx}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:9  title 'Im[{/Symbol s}_{yx}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:10 title 'Re[{/Symbol s}_{yy}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:11 title 'Im[{/Symbol s}_{yy}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:12 title 'Re[{/Symbol s}_{yz}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:13 title 'Im[{/Symbol s}_{yz}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:14 title 'Re[{/Symbol s}_{zx}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:15 title 'Im[{/Symbol s}_{zx}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:16 title 'Re[{/Symbol s}_{zy}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:17 title 'Im[{/Symbol s}_{zy}]' with lines ls 2
plot "XASSigma_method2.dat" u 1:18 title 'Re[{/Symbol s}_{zz}]' with lines ls 1,\
"XASSigma_method2.dat" u 1:19 title 'Im[{/Symbol s}_{zz}]' with lines ls 2

unset multiplot
]]

print("Prepare gnuplot-file for Sigma")

-- write the gnuplot script to a file
file = io.open("SigmaTensor_method2.gnuplot", "w")
file:write(gnuplotInput)
file:close()

print("")
print("Execute the gnuplot to produce plots and convert the output into a pdf-file")

-- call gnuplot to execute the script
os.execute("gnuplot SigmaTensor_method2.gnuplot ; ps2pdf SigmaTensor_method2.ps ; ps2eps SigmaTensor_method2.ps ;  mv SigmaTensor_method2.eps temp.eps ; eps2eps temp.eps SigmaTensor_method2.eps ; rm temp.eps")

-------------------------- difference ------------------------

XASSigma_diff = XASSigma_method2 - XASSigma_method1

XASSigma_diff.Print({{"file","XASSigma_diff.dat"}})

-- prepare the gnuplot output for Sigma
gnuplotInput = [[
set autoscale   # scale axes automatically
set xtic auto   # set xtics automatically
set ytic auto   # set ytics automatically
set style line  1 lt 1 lw 2 lc 1
set style line  2 lt 1 lw 2 lc 3

set xlabel "E (eV)" font "Times,10"
set ylabel "Intensity (arb. units * 1000 000 000)" font "Times,10"

set yrange [-0.3:0.3]

scale = 1000000000

set out 'XASSigma_diff.ps'
set size 1.0, 1.0
set terminal postscript portrait enhanced color  "Times" 8

set multiplot layout 6, 3

plot "XASSigma_diff.dat" u 1:($2*scale) title 'Re[{/Symbol s}_{xx}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($3*scale)  title 'Im[{/Symbol s}_{xx}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($4*scale) title 'Re[{/Symbol s}_{xy}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($5*scale)  title 'Im[{/Symbol s}_{xy}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($6*scale) title 'Re[{/Symbol s}_{xz}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($7*scale)  title 'Im[{/Symbol s}_{xz}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($8*scale) title 'Re[{/Symbol s}_{yx}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($9*scale)  title 'Im[{/Symbol s}_{yx}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($10*scale) title 'Re[{/Symbol s}_{yy}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($11*scale) title 'Im[{/Symbol s}_{yy}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($12*scale) title 'Re[{/Symbol s}_{yz}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($13*scale) title 'Im[{/Symbol s}_{yz}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($14*scale) title 'Re[{/Symbol s}_{zx}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($15*scale) title 'Im[{/Symbol s}_{zx}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($16*scale) title 'Re[{/Symbol s}_{zy}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($17*scale) title 'Im[{/Symbol s}_{zy}]' with lines ls 2
plot "XASSigma_diff.dat" u 1:($18*scale) title 'Re[{/Symbol s}_{zz}]' with lines ls 1,\ "XASSigma_diff.dat" u 1:($19*scale) title 'Im[{/Symbol s}_{zz}]' with lines ls 2

unset multiplot
]]

print("Prepare gnuplot-file for Sigma")

-- write the gnuplot script to a file
file = io.open("XASSigma_diff.gnuplot", "w")
file:write(gnuplotInput)
file:close()

print("")
print("Execute the gnuplot to produce plots and convert the output into a pdf-file")

-- call gnuplot to execute the script
os.execute("gnuplot XASSigma_diff.gnuplot ; ps2pdf XASSigma_diff.ps ; ps2eps XASSigma_diff.ps ;  mv XASSigma_diff.eps temp.eps ; eps2eps temp.eps XASSigma_diff.eps ; rm temp.eps")

---------------- overview of timing -------------------
TimePrint()

The resulting spectra are for method 1 are:

 $2p$ to $3d$ excitations for all possible polarizations represented as a conductivity tensor. Calculated using 9 spectra of different rotated polarization and linear combining. ###

The resulting spectra are for method 2 are:

 $2p$ to $3d$ excitations for all possible polarizations represented as a conductivity tensor. Calculated using a block Lanczos method. The difference is:

 Difference between the conductivity tensor calculated using method 1 or 2 The output of the script is:

XAS_tensor.out
Start of BlockGroundState. Converge 3 states to an energy with relative variance smaller than  1.490116119384766E-06

Start of BlockOperatorPsiSerialRestricted
Outer loop   1, Number of Determinants:        45        45 last variance  1.159112471523181E+00
Start of BlockOperatorPsiSerialRestricted
Start of BlockGroundState. Converge 3 states to an energy with relative variance smaller than  1.490116119384766E-06

Start of BlockOperatorPsiSerial
Outer loop   1, Number of Determinants:        32       100 last variance  8.359599622001442E+00
Start of BlockOperatorPsiSerial
Outer loop   2, Number of Determinants:       100       138 last variance  1.315915512292445E+00
Start of BlockOperatorPsiSerial
#    <E>      <S^2>    <L^2>    <J^2>    <S_z^3d> <L_z^3d> <l.s>    <F>   <F>   <Neg^3d> <Nt2g^3d><Neg^Ld> <Nt2g^Ld><N^3d>
1   -3.503    1.999   12.000   15.095   -0.908   -0.281   -0.305   -1.042   -0.924    2.186    5.990    3.825    6.000    8.175
2   -3.395    1.999   12.000   15.160   -0.004   -0.002   -0.322   -1.043   -0.925    2.189    5.988    3.823    6.000    8.178
3   -3.286    1.999   12.000   15.211    0.903    0.278   -0.336   -1.043   -0.925    2.193    5.987    3.820    6.000    8.180
Start of LanczosTriDiagonalizeRR
Start of LanczosTriDiagonalizeRC
Start of LanczosTriDiagonalizeRR
Start of LanczosTriDiagonalizeRC
Start of LanczosTriDiagonalizeRR
Start of LanczosTriDiagonalizeRC
Start of LanczosTriDiagonalizeRC
Start of LanczosTriDiagonalizeRC
Start of LanczosTriDiagonalizeRC
Spectra printed to file: XASSigma_method1.dat
Prepare gnuplot-file for Sigma

Execute the gnuplot to produce plots and convert the output into a pdf-file
Start of LanczosBlockTriDiagonalize
Start of LanczosBlockTriDiagonalizeRC
Spectra printed to file: XASSigma_method2.dat
Prepare gnuplot-file for Sigma

Execute the gnuplot to produce plots and convert the output into a pdf-file
Spectra printed to file: XASSigma_diff.dat
Prepare gnuplot-file for Sigma

Execute the gnuplot to produce plots and convert the output into a pdf-file
Timing results
Total_time | NumberOfRuns | Running | Name
0:00:05 |            1 |       0 | Mehtod1
0:00:17 |            2 |       0 | Broaden
0:00:02 |            1 |       0 | Mehtod2

###

Workshops

Script versions External programs Privacy

##### Tools
