Point Group C3

Point Group C3

Character Table

$ $	$ \text{E} \,{\text{(1)}} $	$ C_3 \,{\text{(2)}} $
$ \text{A} $	$ 1 $	$ 1 $
$ \text{E} $	$ 2 $	$ -1 $

Product Table

$ $	$ \text{A} $	$ \text{E} $
$ \text{A} $	$ \text{A} $	$ \text{E} $
$ \text{E} $	$ \text{E} $	$ 2 \text{A}+\text{E} $

Implemented Settings

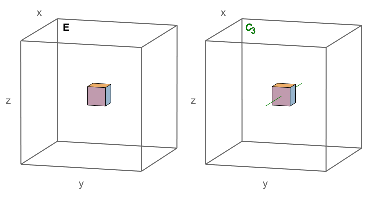

Setting X

Details of the C3 group in with setting X

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{1,0,0\}$ , $\{-1,0,0\}$ ,

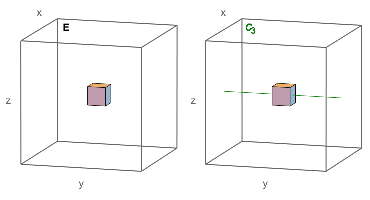

Setting Y

Details of the C3 group in with setting Y

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,1,0\}$ , $\{0,-1,0\}$ ,

Setting Z

Details of the C3 group in with setting Z

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
