Point Group S4
Character Table
E(1) | S4(2) | C2(1) | |
---|---|---|---|
A | 1 | 1 | 1 |
B | 1 | −1 | 1 |
E | 2 | 0 | −2 |
Product Table
A | B | E | |
---|---|---|---|
A | A | B | E |
B | B | A | E |
E | E | E | 2A+2B |
Implemented Settings
Setting Z

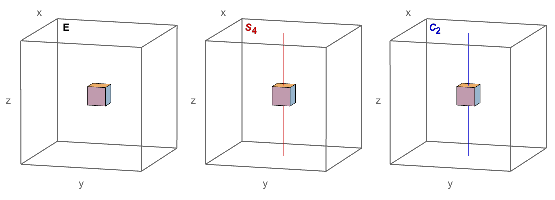

Details of the S4 group in with setting Z
Operator | Orientation |
---|---|
E | {0,0,0} , |
S4 | {0,0,1} , {0,0,−1} , |
C2 | {0,0,1} , |
