Point Group C3h

Character Table

$ $ $ \text{E} \,{\text{(1)}} $ $ C_3 \,{\text{(2)}} $ $ \sigma_h \,{\text{(1)}} $ $ S_3 \,{\text{(2)}} $
$ \text{A'} $ $ 1 $ $ 1 $ $ 1 $ $ 1 $
$ \text{A''} $ $ 1 $ $ 1 $ $ -1 $ $ -1 $
$ \text{E'} $ $ 2 $ $ -1 $ $ 2 $ $ -1 $
$ \text{E''} $ $ 2 $ $ -1 $ $ -2 $ $ 1 $

Product Table

$ $ $ \text{A'} $ $ \text{A''} $ $ \text{E'} $ $ \text{E''} $
$ \text{A'} $ $ \text{A'} $ $ \text{A''} $ $ \text{E'} $ $ \text{E''} $
$ \text{A''} $ $ \text{A''} $ $ \text{A'} $ $ \text{E''} $ $ \text{E'} $
$ \text{E'} $ $ \text{E'} $ $ \text{E''} $ $ 2 \text{A'}+\text{E'} $ $ 2 \text{A''}+\text{E''} $
$ \text{E''} $ $ \text{E''} $ $ \text{E'} $ $ 2 \text{A''}+\text{E''} $ $ 2 \text{A'}+\text{E'} $

Implemented Settings

C3h_Z

Setting Z

Details of the C3h group in with setting Z

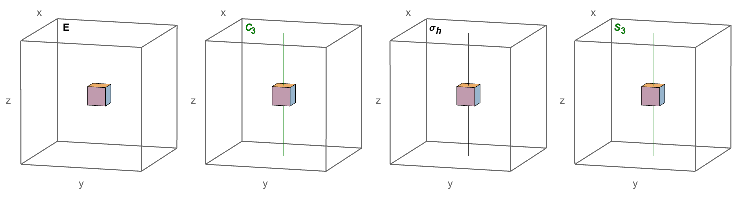

Operator Orientation
$\text{E}$ $\{0,0,0\}$ ,
$C_3$ $\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _h$ $\{0,0,1\}$ ,
$S_3$ $\{0,0,1\}$ , $\{0,0,-1\}$ ,
