Point Group C5

Point Group C5

Character Table

$ $	$ \text{E} \,{\text{(1)}} $	$ C_5 \,{\text{(2)}} $	$ C_5^2{} \,{\text{(2)}} $
$ \text{A} $	$ 1 $	$ 1 $	$ 1 $
$ E_1 $	$ 2 $	$ \frac{1}{2} \left(-1+\sqrt{5}\right) $	$ \frac{1}{2} \left(-1-\sqrt{5}\right) $
$ E_2 $	$ 2 $	$ \frac{1}{2} \left(-1-\sqrt{5}\right) $	$ \frac{1}{2} \left(-1+\sqrt{5}\right) $

Product Table

$ $	$ \text{A} $	$ E_1 $	$ E_2 $
$ \text{A} $	$ \text{A} $	$ E_1 $	$ E_2 $
$ E_1 $	$ E_1 $	$ 2 \text{A}+E_2 $	$ E_1+E_2 $
$ E_2 $	$ E_2 $	$ E_1+E_2 $	$ 2 \text{A}+E_1 $

Implemented Settings

Setting X

Details of the C5 group in with setting X

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_5$	$\{1,0,0\}$ , $\{-1,0,0\}$ ,
$C_5^2$	$\{1,0,0\}$ , $\{-1,0,0\}$ ,

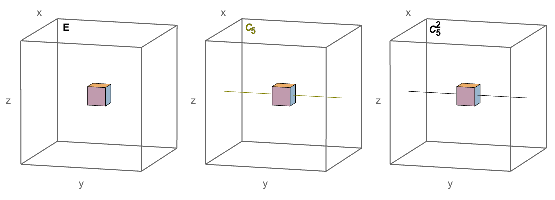

Setting Y

Details of the C5 group in with setting Y

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_5$	$\{0,1,0\}$ , $\{0,-1,0\}$ ,
$C_5^2$	$\{0,1,0\}$ , $\{0,-1,0\}$ ,

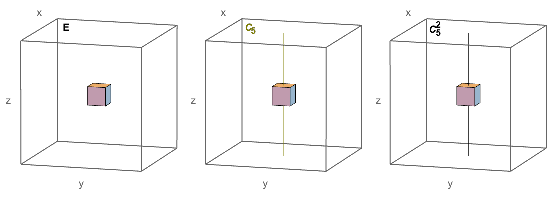

Setting Z

Details of the C5 group in with setting Z

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_5$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_5^2$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
