Point Group C4h

Point Group C4h

Character Table

	$\text{E} \,{\text{(1)}}$	$C_4 \,{\text{(2)}}$	$C_2 \,{\text{(1)}}$	$\text{i} \,{\text{(1)}}$	$S_4 \,{\text{(2)}}$	$\sigma_h \,{\text{(1)}}$
$A_g$	$1$	$1$	$1$	$1$	$1$	$1$
$B_g$	$1$	$-1$	$1$	$1$	$-1$	$1$
$E_g$	$2$	$0$	$-2$	$2$	$0$	$-2$
$A_u$	$1$	$1$	$1$	$-1$	$-1$	$-1$
$B_u$	$1$	$-1$	$1$	$-1$	$1$	$-1$
$E_u$	$2$	$0$	$-2$	$-2$	$0$	$2$

Product Table

	$A_g$	$B_g$	$E_g$	$A_u$	$B_u$	$E_u$
$A_g$	$A_g$	$B_g$	$E_g$	$A_u$	$B_u$	$E_u$
$B_g$	$B_g$	$A_g$	$E_g$	$B_u$	$A_u$	$E_u$
$E_g$	$E_g$	$E_g$	$2 A_g+2 B_g$	$E_u$	$E_u$	$2 A_u+2 B_u$
$A_u$	$A_u$	$B_u$	$E_u$	$A_g$	$B_g$	$E_g$
$B_u$	$B_u$	$A_u$	$E_u$	$B_g$	$A_g$	$E_g$
$E_u$	$E_u$	$E_u$	$2 A_u+2 B_u$	$E_g$	$E_g$	$2 A_g+2 B_g$

Implemented Settings

Setting Z

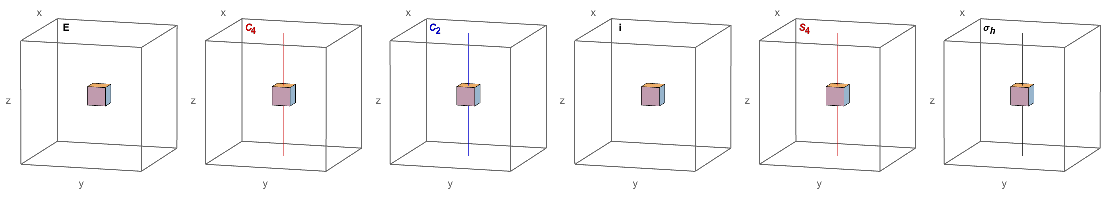

Details of the C4h group in with setting Z

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_4$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{0,0,1\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_4$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _h$	$\{0,0,1\}$ ,
