Point Group D3d

Point Group D3d

Character Table

$ $	$ \text{E} \,{\text{(1)}} $	$ C_3 \,{\text{(2)}} $	$ C_2 \,{\text{(3)}} $	$ \text{i} \,{\text{(1)}} $	$ S_6 \,{\text{(2)}} $	$ \sigma_d \,{\text{(3)}} $
$ A_{1g} $	$ 1 $	$ 1 $	$ 1 $	$ 1 $	$ 1 $	$ 1 $
$ A_{2g} $	$ 1 $	$ 1 $	$ -1 $	$ 1 $	$ 1 $	$ -1 $
$ E_g $	$ 2 $	$ -1 $	$ 0 $	$ 2 $	$ -1 $	$ 0 $
$ A_{1u} $	$ 1 $	$ 1 $	$ 1 $	$ -1 $	$ -1 $	$ -1 $
$ A_{2u} $	$ 1 $	$ 1 $	$ -1 $	$ -1 $	$ -1 $	$ 1 $
$ E_u $	$ 2 $	$ -1 $	$ 0 $	$ -2 $	$ 1 $	$ 0 $

Product Table

$ $	$ A_{1g} $	$ A_{2g} $	$ E_g $	$ A_{1u} $	$ A_{2u} $	$ E_u $
$ A_{1g} $	$ A_{1g} $	$ A_{2g} $	$ E_g $	$ A_{1u} $	$ A_{2u} $	$ E_u $
$ A_{2g} $	$ A_{2g} $	$ A_{1g} $	$ E_g $	$ A_{2u} $	$ A_{1u} $	$ E_u $
$ E_g $	$ E_g $	$ E_g $	$ A_{1g}+A_{2g}+E_g $	$ E_u $	$ E_u $	$ A_{1u}+A_{2u}+E_u $
$ A_{1u} $	$ A_{1u} $	$ A_{2u} $	$ E_u $	$ A_{1g} $	$ A_{2g} $	$ E_g $
$ A_{2u} $	$ A_{2u} $	$ A_{1u} $	$ E_u $	$ A_{2g} $	$ A_{1g} $	$ E_g $
$ E_u $	$ E_u $	$ E_u $	$ A_{1u}+A_{2u}+E_u $	$ E_g $	$ E_g $	$ A_{1g}+A_{2g}+E_g $

Implemented Settings

D3d_111 D3d_Zx D3d_Zx_A D3d_Zx_B D3d_Z(x-y) D3d_Z(x-y)_A D3d_Z(x-y)_B D3d_Zy D3d_Zy_A D3d_Zy_B

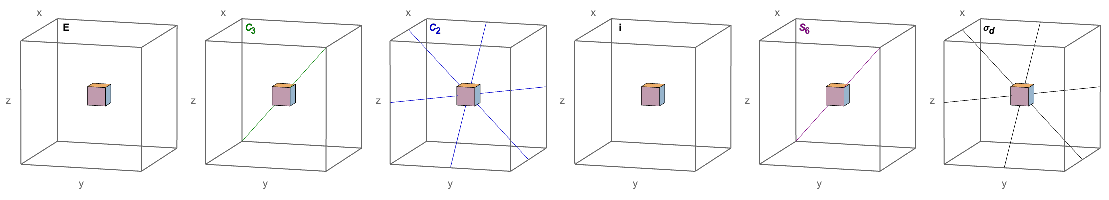

Setting 111

Details of the D3d group in with setting 111

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{1,1,1\}$ , $\{-1,-1,-1\}$ ,
$C_2$	$\{1,-1,0\}$ , $\{0,1,-1\}$ , $\{1,0,-1\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{1,1,1\}$ , $\{-1,-1,-1\}$ ,
$\sigma _d$	$\{1,-1,0\}$ , $\{0,1,-1\}$ , $\{1,0,-1\}$ ,

Setting Zx

Details of the D3d group in with setting Zx

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{1,0,0\}$ , $\left\{1,\sqrt{3},0\right\}$ , $\left\{-1,\sqrt{3},0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{1,0,0\}$ , $\left\{1,\sqrt{3},0\right\}$ , $\left\{-1,\sqrt{3},0\right\}$ ,

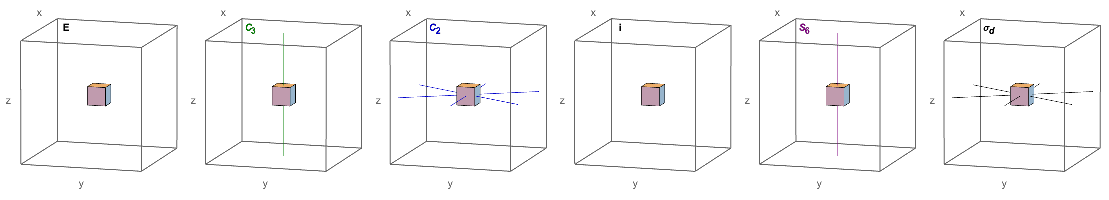

Setting Zx_A

Details of the D3d group in with setting Zx_A

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{1,0,0\}$ , $\left\{1,\sqrt{3},0\right\}$ , $\left\{-1,\sqrt{3},0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{1,0,0\}$ , $\left\{1,\sqrt{3},0\right\}$ , $\left\{-1,\sqrt{3},0\right\}$ ,

Setting Zx_B

Details of the D3d group in with setting Zx_B

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{1,0,0\}$ , $\left\{1,\sqrt{3},0\right\}$ , $\left\{-1,\sqrt{3},0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{1,0,0\}$ , $\left\{1,\sqrt{3},0\right\}$ , $\left\{-1,\sqrt{3},0\right\}$ ,

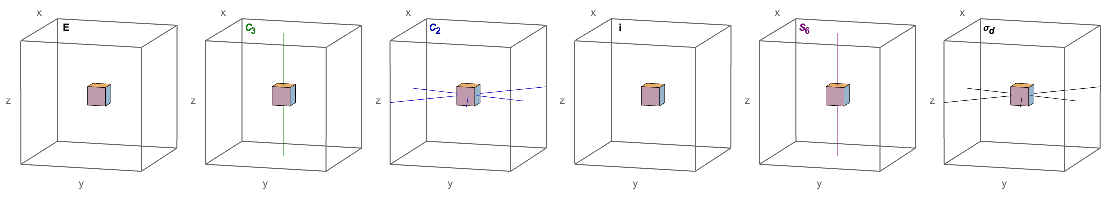

Setting Z(x-y)

Details of the D3d group in with setting Z(x-y)

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{1,-1,0\}$ , $\left\{1+\sqrt{3},\sqrt{3}-1,0\right\}$ , $\left\{1-\sqrt{3},-1-\sqrt{3},0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{1,-1,0\}$ , $\left\{1+\sqrt{3},\sqrt{3}-1,0\right\}$ , $\left\{1-\sqrt{3},-1-\sqrt{3},0\right\}$ ,

Setting Z(x-y)_A

Details of the D3d group in with setting Z(x-y)_A

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{1,-1,0\}$ , $\left\{1+\sqrt{3},\sqrt{3}-1,0\right\}$ , $\left\{1-\sqrt{3},-1-\sqrt{3},0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{1,-1,0\}$ , $\left\{1+\sqrt{3},\sqrt{3}-1,0\right\}$ , $\left\{1-\sqrt{3},-1-\sqrt{3},0\right\}$ ,

Setting Z(x-y)_B

Details of the D3d group in with setting Z(x-y)_B

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{1,-1,0\}$ , $\left\{1+\sqrt{3},\sqrt{3}-1,0\right\}$ , $\left\{1-\sqrt{3},-1-\sqrt{3},0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{1,-1,0\}$ , $\left\{1+\sqrt{3},\sqrt{3}-1,0\right\}$ , $\left\{1-\sqrt{3},-1-\sqrt{3},0\right\}$ ,

Setting Zy

Details of the D3d group in with setting Zy

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{0,1,0\}$ , $\left\{\sqrt{3},1,0\right\}$ , $\left\{\sqrt{3},-1,0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{0,1,0\}$ , $\left\{\sqrt{3},1,0\right\}$ , $\left\{\sqrt{3},-1,0\right\}$ ,

Setting Zy_A

Details of the D3d group in with setting Zy_A

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{0,1,0\}$ , $\left\{\sqrt{3},1,0\right\}$ , $\left\{\sqrt{3},-1,0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{0,1,0\}$ , $\left\{\sqrt{3},1,0\right\}$ , $\left\{\sqrt{3},-1,0\right\}$ ,

Setting Zy_B

Details of the D3d group in with setting Zy_B

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{0,1,0\}$ , $\left\{\sqrt{3},1,0\right\}$ , $\left\{\sqrt{3},-1,0\right\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _d$	$\{0,1,0\}$ , $\left\{\sqrt{3},1,0\right\}$ , $\left\{\sqrt{3},-1,0\right\}$ ,
