Point Group C6h

Point Group C6h

Character Table

	$\text{E} \,{\text{(1)}}$	$C_6 \,{\text{(2)}}$	$C_3 \,{\text{(2)}}$	$C_2 \,{\text{(1)}}$	$\text{i} \,{\text{(1)}}$	$S_6 \,{\text{(2)}}$	$S_3 \,{\text{(2)}}$	$\sigma_h \,{\text{(1)}}$
$A_g$	$1$	$1$	$1$	$1$	$1$	$1$	$1$	$1$
$B_g$	$1$	$-1$	$1$	$-1$	$1$	$1$	$-1$	$-1$
$E_{1g}$	$2$	$1$	$-1$	$-2$	$2$	$-1$	$1$	$-2$
$E_{2g}$	$2$	$-1$	$-1$	$2$	$2$	$-1$	$-1$	$2$
$A_u$	$1$	$1$	$1$	$1$	$-1$	$-1$	$-1$	$-1$
$B_u$	$1$	$-1$	$1$	$-1$	$-1$	$-1$	$1$	$1$
$E_{1u}$	$2$	$1$	$-1$	$-2$	$-2$	$1$	$-1$	$2$
$E_{2u}$	$2$	$-1$	$-1$	$2$	$-2$	$1$	$1$	$-2$

Product Table

	$A_g$	$B_g$	$E_{1g}$	$E_{2g}$	$A_u$	$B_u$	$E_{1u}$	$E_{2u}$
$A_g$	$A_g$	$B_g$	$E_{1g}$	$E_{2g}$	$A_u$	$B_u$	$E_{1u}$	$E_{2u}$
$B_g$	$B_g$	$A_g$	$E_{2g}$	$E_{1g}$	$B_u$	$A_u$	$E_{2u}$	$E_{1u}$
$E_{1g}$	$E_{1g}$	$E_{2g}$	$2 A_g+E_{2g}$	$2 B_g+E_{1g}$	$E_{1u}$	$E_{2u}$	$2 A_u+E_{2u}$	$2 B_u+E_{1u}$
$E_{2g}$	$E_{2g}$	$E_{1g}$	$2 B_g+E_{1g}$	$2 A_g+E_{2g}$	$E_{2u}$	$E_{1u}$	$2 B_u+E_{1u}$	$2 A_u+E_{2u}$
$A_u$	$A_u$	$B_u$	$E_{1u}$	$E_{2u}$	$A_g$	$B_g$	$E_{1g}$	$E_{2g}$
$B_u$	$B_u$	$A_u$	$E_{2u}$	$E_{1u}$	$B_g$	$A_g$	$E_{2g}$	$E_{1g}$
$E_{1u}$	$E_{1u}$	$E_{2u}$	$2 A_u+E_{2u}$	$2 B_u+E_{1u}$	$E_{1g}$	$E_{2g}$	$2 A_g+E_{2g}$	$2 B_g+E_{1g}$
$E_{2u}$	$E_{2u}$	$E_{1u}$	$2 B_u+E_{1u}$	$2 A_u+E_{2u}$	$E_{2g}$	$E_{1g}$	$2 B_g+E_{1g}$	$2 A_g+E_{2g}$

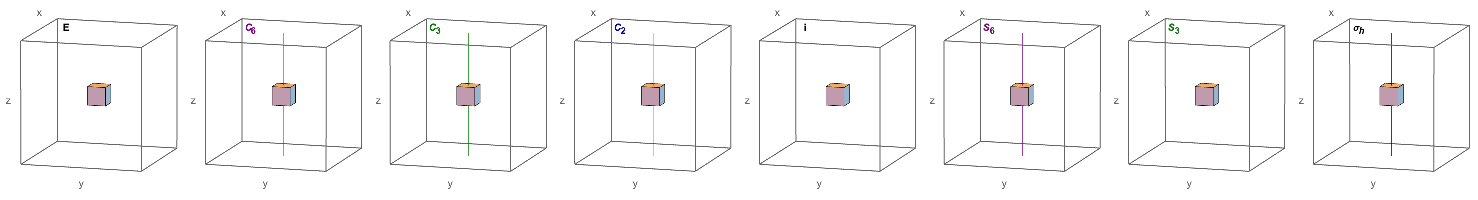

Implemented Settings

Setting Z

Details of the C6h group in with setting Z

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{0,0,1\}$ ,
$\text{i}$	$\{0,0,0\}$ ,
$S_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$S_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$\sigma _h$	$\{0,0,1\}$ ,
