Point Group T
Character Table
| $ $ | $ \text{E} \,{\text{(1)}} $ | $ C_3 \,{\text{(8)}} $ | $ C_2 \,{\text{(3)}} $ |
|---|---|---|---|
| $ \text{A} $ | $ 1 $ | $ 1 $ | $ 1 $ |
| $ \text{E} $ | $ 2 $ | $ -1 $ | $ 2 $ |
| $ \text{T} $ | $ 3 $ | $ 0 $ | $ -1 $ |
Product Table
| $ $ | $ \text{A} $ | $ \text{E} $ | $ \text{T} $ |
|---|---|---|---|
| $ \text{A} $ | $ \text{A} $ | $ \text{E} $ | $ \text{T} $ |
| $ \text{E} $ | $ \text{E} $ | $ 2 \text{A}+\text{E} $ | $ 2 \text{T} $ |
| $ \text{T} $ | $ \text{T} $ | $ 2 \text{T} $ | $ \text{A}+\text{E}+2 \text{T} $ |
Implemented Settings
Setting xyz

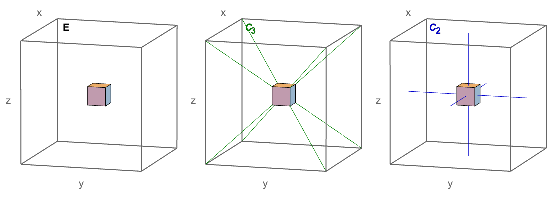

Details of the T group in with setting xyz
| Operator | Orientation |
|---|---|
| $\text{E}$ | $\{0,0,0\}$ , |
| $C_3$ | $\{1,1,1\}$ , $\{1,1,-1\}$ , $\{1,-1,1\}$ , $\{-1,1,1\}$ , $\{-1,-1,-1\}$ , $\{-1,-1,1\}$ , $\{-1,1,-1\}$ , $\{1,-1,-1\}$ , |
| $C_2$ | $\{0,0,1\}$ , $\{0,1,0\}$ , $\{1,0,0\}$ , |
