Point Group D5d
Character Table
| $ $ | $ \text{E} \,{\text{(1)}} $ | $ C_5 \,{\text{(2)}} $ | $ C_5^2{} \,{\text{(2)}} $ | $ C_2 \,{\text{(5)}} $ | $ \text{i} \,{\text{(1)}} $ | $ S_{10} \,{\text{(2)}} $ | $ S_{10}^3{} \,{\text{(2)}} $ | $ \sigma_d \,{\text{(5)}} $ |
|---|---|---|---|---|---|---|---|---|
| $ A_{1g} $ | $ 1 $ | $ 1 $ | $ 1 $ | $ 1 $ | $ 1 $ | $ 1 $ | $ 1 $ | $ 1 $ |
| $ A_{2g} $ | $ 1 $ | $ 1 $ | $ 1 $ | $ -1 $ | $ 1 $ | $ 1 $ | $ 1 $ | $ -1 $ |
| $ E_{1g} $ | $ 2 $ | $ \frac{1}{2} \left(-1+\sqrt{5}\right) $ | $ \frac{1}{2} \left(-1-\sqrt{5}\right) $ | $ 0 $ | $ 2 $ | $ \frac{1}{2} \left(-1-\sqrt{5}\right) $ | $ \frac{1}{2} \left(-1+\sqrt{5}\right) $ | $ 0 $ |
| $ E_{2g} $ | $ 2 $ | $ \frac{1}{2} \left(-1-\sqrt{5}\right) $ | $ \frac{1}{2} \left(-1+\sqrt{5}\right) $ | $ 0 $ | $ 2 $ | $ \frac{1}{2} \left(-1+\sqrt{5}\right) $ | $ \frac{1}{2} \left(-1-\sqrt{5}\right) $ | $ 0 $ |
| $ A_{1u} $ | $ 1 $ | $ 1 $ | $ 1 $ | $ 1 $ | $ -1 $ | $ -1 $ | $ -1 $ | $ -1 $ |
| $ A_{2u} $ | $ 1 $ | $ 1 $ | $ 1 $ | $ -1 $ | $ -1 $ | $ -1 $ | $ -1 $ | $ 1 $ |
| $ E_{1u} $ | $ 2 $ | $ \frac{1}{2} \left(-1+\sqrt{5}\right) $ | $ \frac{1}{2} \left(-1-\sqrt{5}\right) $ | $ 0 $ | $ -2 $ | $ \frac{1}{2} \left(1+\sqrt{5}\right) $ | $ \frac{1}{2} \left(1-\sqrt{5}\right) $ | $ 0 $ |
| $ E_{2u} $ | $ 2 $ | $ \frac{1}{2} \left(-1-\sqrt{5}\right) $ | $ \frac{1}{2} \left(-1+\sqrt{5}\right) $ | $ 0 $ | $ -2 $ | $ \frac{1}{2} \left(1-\sqrt{5}\right) $ | $ \frac{1}{2} \left(1+\sqrt{5}\right) $ | $ 0 $ |
Product Table
| $ $ | $ A_{1g} $ | $ A_{2g} $ | $ E_{1g} $ | $ E_{2g} $ | $ A_{1u} $ | $ A_{2u} $ | $ E_{1u} $ | $ E_{2u} $ |
|---|---|---|---|---|---|---|---|---|
| $ A_{1g} $ | $ A_{1g} $ | $ A_{2g} $ | $ E_{1g} $ | $ E_{2g} $ | $ A_{1u} $ | $ A_{2u} $ | $ E_{1u} $ | $ E_{2u} $ |
| $ A_{2g} $ | $ A_{2g} $ | $ A_{1g} $ | $ E_{1g} $ | $ E_{2g} $ | $ A_{2u} $ | $ A_{1u} $ | $ E_{1u} $ | $ E_{2u} $ |
| $ E_{1g} $ | $ E_{1g} $ | $ E_{1g} $ | $ A_{1g}+A_{2g}+E_{2g} $ | $ E_{1g}+E_{2g} $ | $ E_{1u} $ | $ E_{1u} $ | $ A_{1u}+A_{2u}+E_{2u} $ | $ E_{1u}+E_{2u} $ |
| $ E_{2g} $ | $ E_{2g} $ | $ E_{2g} $ | $ E_{1g}+E_{2g} $ | $ A_{1g}+A_{2g}+E_{1g} $ | $ E_{2u} $ | $ E_{2u} $ | $ E_{1u}+E_{2u} $ | $ A_{1u}+A_{2u}+E_{1u} $ |
| $ A_{1u} $ | $ A_{1u} $ | $ A_{2u} $ | $ E_{1u} $ | $ E_{2u} $ | $ A_{1g} $ | $ A_{2g} $ | $ E_{1g} $ | $ E_{2g} $ |
| $ A_{2u} $ | $ A_{2u} $ | $ A_{1u} $ | $ E_{1u} $ | $ E_{2u} $ | $ A_{2g} $ | $ A_{1g} $ | $ E_{1g} $ | $ E_{2g} $ |
| $ E_{1u} $ | $ E_{1u} $ | $ E_{1u} $ | $ A_{1u}+A_{2u}+E_{2u} $ | $ E_{1u}+E_{2u} $ | $ E_{1g} $ | $ E_{1g} $ | $ A_{1g}+A_{2g}+E_{2g} $ | $ E_{1g}+E_{2g} $ |
| $ E_{2u} $ | $ E_{2u} $ | $ E_{2u} $ | $ E_{1u}+E_{2u} $ | $ A_{1u}+A_{2u}+E_{1u} $ | $ E_{2g} $ | $ E_{2g} $ | $ E_{1g}+E_{2g} $ | $ A_{1g}+A_{2g}+E_{1g} $ |
Implemented Settings

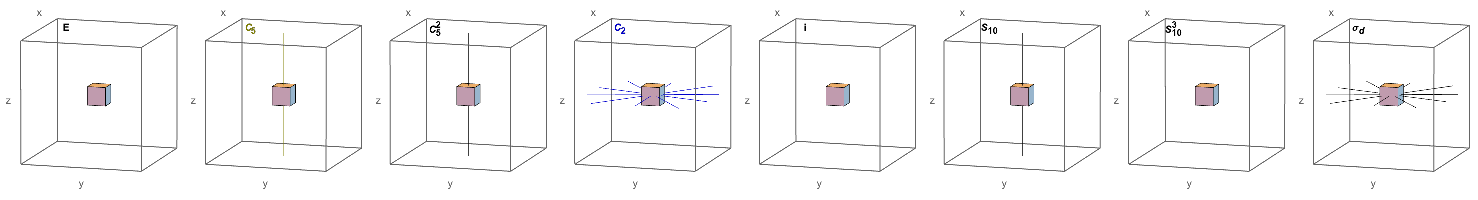

Setting Zx
Details of the D5d group in with setting Zx
| Operator | Orientation |
|---|---|
| $\text{E}$ | $\{0,0,0\}$ , |
| $C_5$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $C_5^2$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $C_2$ | $\{1,0,0\}$ , $\left\{1,\sqrt{5+2 \sqrt{5}},0\right\}$ , $\left\{-\sqrt{1+\frac{2}{\sqrt{5}}},1,0\right\}$ , $\left\{\sqrt{1+\frac{2}{\sqrt{5}}},1,0\right\}$ , $\left\{1,-\sqrt{5+2 \sqrt{5}},0\right\}$ , |
| $\text{i}$ | $\{0,0,0\}$ , |
| $S_{10}$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $S_{10}^3$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $\sigma _d$ | $\{1,0,0\}$ , $\left\{1,\sqrt{5+2 \sqrt{5}},0\right\}$ , $\left\{-\sqrt{1+\frac{2}{\sqrt{5}}},1,0\right\}$ , $\left\{\sqrt{1+\frac{2}{\sqrt{5}}},1,0\right\}$ , $\left\{1,-\sqrt{5+2 \sqrt{5}},0\right\}$ , |
Setting Zy
Details of the D5d group in with setting Zy
| Operator | Orientation |
|---|---|
| $\text{E}$ | $\{0,0,0\}$ , |
| $C_5$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $C_5^2$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $C_2$ | $\{0,1,0\}$ , $\left\{-\sqrt{5+2 \sqrt{5}},1,0\right\}$ , $\left\{1,\sqrt{1+\frac{2}{\sqrt{5}}},0\right\}$ , $\left\{1,-\sqrt{1+\frac{2}{\sqrt{5}}},0\right\}$ , $\left\{\sqrt{5+2 \sqrt{5}},1,0\right\}$ , |
| $\text{i}$ | $\{0,0,0\}$ , |
| $S_{10}$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $S_{10}^3$ | $\{0,0,1\}$ , $\{0,0,-1\}$ , |
| $\sigma _d$ | $\{0,1,0\}$ , $\left\{-\sqrt{5+2 \sqrt{5}},1,0\right\}$ , $\left\{1,\sqrt{1+\frac{2}{\sqrt{5}}},0\right\}$ , $\left\{1,-\sqrt{1+\frac{2}{\sqrt{5}}},0\right\}$ , $\left\{\sqrt{5+2 \sqrt{5}},1,0\right\}$ , |
