Point Group C6

Point Group C6

Character Table

$ $	$ \text{E} \,{\text{(1)}} $	$ C_6 \,{\text{(2)}} $	$ C_3 \,{\text{(2)}} $	$ C_2 \,{\text{(1)}} $
$ \text{A} $	$ 1 $	$ 1 $	$ 1 $	$ 1 $
$ \text{B} $	$ 1 $	$ -1 $	$ 1 $	$ -1 $
$ E_1 $	$ 2 $	$ 1 $	$ -1 $	$ -2 $
$ E_2 $	$ 2 $	$ -1 $	$ -1 $	$ 2 $

Product Table

$ $	$ \text{A} $	$ \text{B} $	$ E_1 $	$ E_2 $
$ \text{A} $	$ \text{A} $	$ \text{B} $	$ E_1 $	$ E_2 $
$ \text{B} $	$ \text{B} $	$ \text{A} $	$ E_2 $	$ E_1 $
$ E_1 $	$ E_1 $	$ E_2 $	$ 2 \text{A}+E_2 $	$ 2 \text{B}+E_1 $
$ E_2 $	$ E_2 $	$ E_1 $	$ 2 \text{B}+E_1 $	$ 2 \text{A}+E_2 $

Implemented Settings

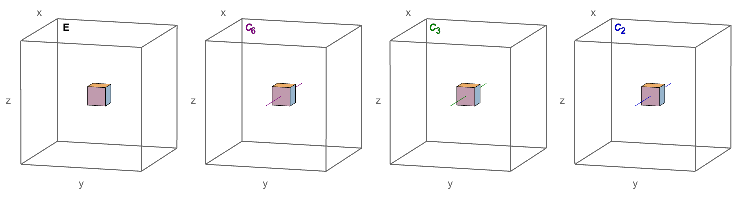

Setting X

Details of the C6 group in with setting X

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_6$	$\{1,0,0\}$ , $\{-1,0,0\}$ ,
$C_3$	$\{1,0,0\}$ , $\{-1,0,0\}$ ,
$C_2$	$\{1,0,0\}$ ,

Setting Y

Details of the C6 group in with setting Y

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_6$	$\{0,1,0\}$ , $\{0,-1,0\}$ ,
$C_3$	$\{0,1,0\}$ , $\{0,-1,0\}$ ,
$C_2$	$\{0,1,0\}$ ,

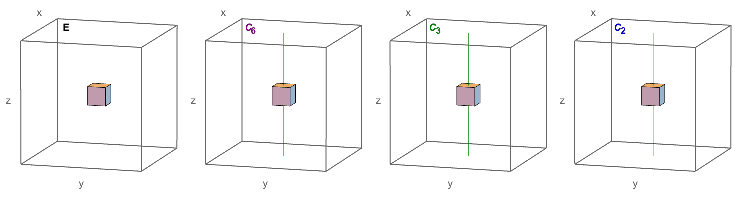

Setting Z

Details of the C6 group in with setting Z

Operator	Orientation
$\text{E}$	$\{0,0,0\}$ ,
$C_6$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_3$	$\{0,0,1\}$ , $\{0,0,-1\}$ ,
$C_2$	$\{0,0,1\}$ ,
